CB550 Orange Optical Glass Filters

Product description:
Nantong Haisheng Optical Co.,Ltd. can supply full range of filters. They are short pass Filter, long pass Filter, band pass Filter, ultraviolet Filter, infrared Filter, heat absorbing Filter, and color temperature conversion filters. We use material by China to Schott, Hoya, and other manufacturers to process them. Metallic films, colored glasses and thin dielectric films filter are all available per your requirements.
Filters are designed by their manufacturers to transmit or absorb different wavelengths of light. And they are widely used in scientific experiments and industrial applications where that change is necessary.

Model	Thickness	A[2856k]			D65			Chemical Stability		ND	α×10-7	Tg	Ts	S
Model	(mm)	x	y	Y	x	y	Y	DA	DW	ND	(/ºC)	(ºC)	(ºC)	S
CB535	2	0.549	0.448	82.2	0.504	0.492	70.2	3	2	1.523	103	527	605	2.64
CB550	2	0.594	0.405	63.6	0.569	0.43	48.4	3	2	1.523	103	527	605	2.64
CB565	2	0.622	0.377	51.6	0.605	0.395	36.7	3	2	1.523	103	527	605	2.64
CB580	2	0.658	0.342	35.9	0.649	0.351	23.3	1	2	1.523	103	527	605	2.64

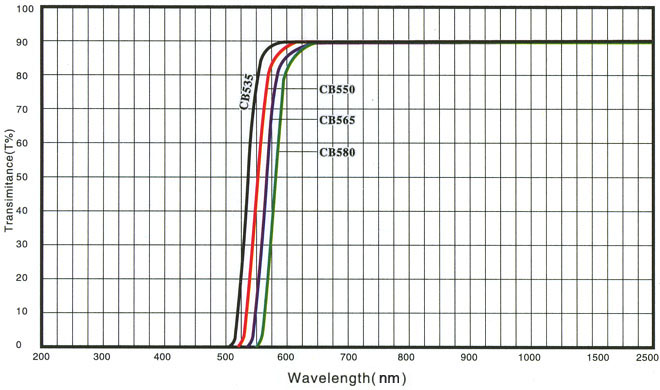

Model	Thickness	λtj	λ0	Tλ0	K	Bubbles	Stripe	Stress
Model	(mm)	(nm)	(nm)	(%)	K	Bubbles	Stripe	Stress
CB535	2	535 ± 10	650	≥88.7	≥1.2	C-B	3C	3
CB550	2	550 ± 10	650	≥88.7	≥1.2	C-B	3C	3
CB565	2	565 ± 10	650	≥88.7	≥1.2	C-B	3C	3
CB580	2	580 ± 10	680	≥88.7	≥1.2	C-B	3C	3v
