Jb400 Yellow Optical Glass for Hair Removal Machine

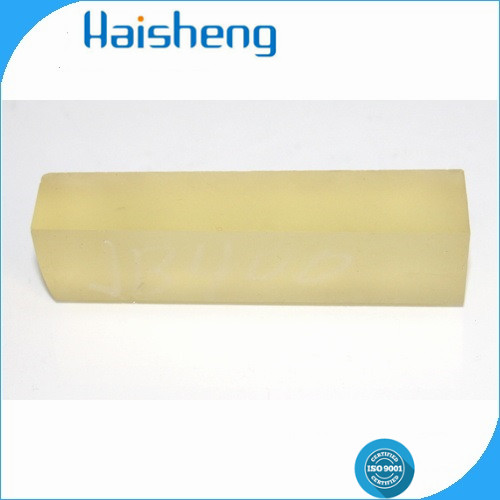

JB400 yellow optical glass

Product description:
Nantong Haisheng Optical Co.,Ltd. can supply full range of filters. They are short pass Filter, long pass Filter, band pass Filter, ultraviolet Filter, infrared Filter, heat absorbing Filter, and color temperature conversion filters. We use material by China to Schott, Hoya, and other manufacturers to process them. Metallic films, colored glasses and thin dielectric films filter are all available per your requirements.
Filters are designed by their manufacturers to transmit or absorb different wavelengths of light. And they are widely used in scientific experiments and industrial applications where that change is necessary.

Model	Thickness	A[2856k]			D65			Chemical Stability		ND	α×10-7	Tg	Ts	S
Model	(mm)	x	y	Y	x	y	Y	DA	DW	ND	(/ºC)	(ºC)	(ºC)	S
JB400	2	0.45	0.41	96.3	0.316	0.336	94.2	1	1	1.632	95	497	555	3.65
JB420	2	0.455	0.414	93.1	0.323	0.346	90.8	2	3	1.632	95	497	555	3.69
JB450	2	0.492	0.461	94.7	0.401	0.488	90.7	1	3	1.523	103	527	605	2.64
JB470	2	0.492	0.462	96	0.401	0.49	92	1	3	1.523	103	527	605	2.64
JB490	2	0.502	0.468	94.5	0.422	0.514	89.6	1	3	1.523	103	527	605	2.64
JB510	2	0.519	0.471	91.5	0.456	0.526	84	1	2	1.523	103	527	605	2.64

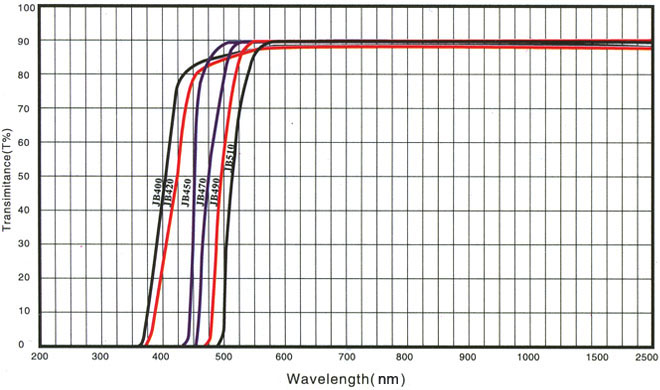

Model	Thickness	λtj	λ0	Tλ0	K	Bubbles	Stripe	Stress
Model	(mm)	(nm)	(nm)	(%)	K	Bubbles	Stripe	Stress
JB400	2	400±10	560	≥86.0	≥0.6	C-B	3C	3
JB420	2	420±10	560	≥86.0	≥0.6	C-B	3C	3
JB450	2	450±10	560	≥89.5	≥0.6	C-B	3C	3
JB470	2	470±10	560	≥89.5	≥0.8	C-B	3C	3
JB490	2	490±10	580	≥89.5	≥1.2	C-B	3C	3
JB510	2	510±10	600	≥89.5	≥1.2	C-B	3C	3
